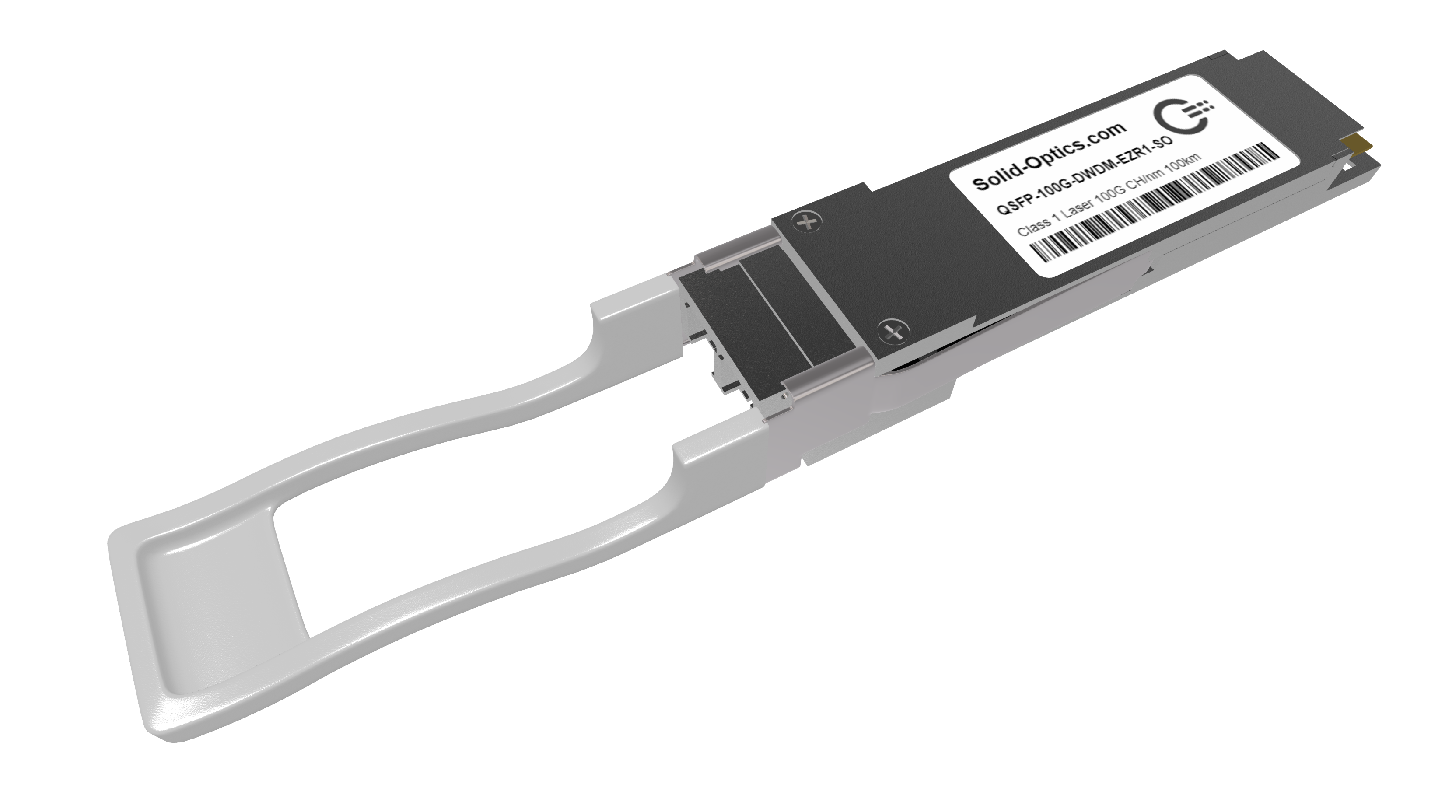

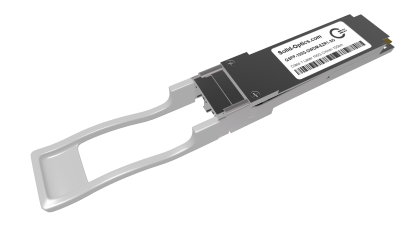

QSFP-100G-DWDM-EZR1-SO

SKU QSFP-100G-DWDM-EZR1-SO Categories 100G QSFP28, DWDM PAM4

100G-DWDM, QSFP28, CH21-CH60 (100-GHz ITU grid), PAM4, require EDFA and DCM to work (up to 100km), LC duplex connectors, DOM

Brand Compatibility

Wavelength

Product Specification

Additional information

Form Factor Group	QSFP28
Speed	100G
Technique	DWDM Fixed 100Ghz
Dom Support	Yes
Connector	LC Duplex
Cable Type	SMF
Laser	DFB
Wavelength	100 Ghz CH21/1560.61 nm, 100 Ghz CH22/1559.79 nm, 100 Ghz CH23/1558.98 nm, 100 Ghz CH24/1558.17 nm, 100 Ghz CH25/1557.36 nm, 100 Ghz CH26/1556.55 nm, 100 Ghz CH27/1555.75 nm, 100 Ghz CH28/1554.94 nm, 100 Ghz CH29/1554.13 nm, 100 Ghz CH30/1553.33 nm, 100 Ghz CH31/1552.52 nm, 100 Ghz CH32/1551.72 nm, 100 Ghz CH33/1550.92 nm, 100 Ghz CH34/1550.12 nm, 100 Ghz CH35/1549.32 nm, 100 Ghz CH36/1548.51 nm, 100 Ghz CH37/1547.72 nm, 100 Ghz CH38/1546.92 nm, 100 Ghz CH39/1546.12 nm, 100 Ghz CH40/1545.32 nm, 100 Ghz CH41/1544.53 nm, 100 Ghz CH42/1543.73 nm, 100 Ghz CH43/1542.94 nm, 100 Ghz CH44/1542.14 nm, 100 Ghz CH45/1541.35 nm, 100 Ghz CH46/1540.56 nm, 100 Ghz CH47/1539.77 nm, 100 Ghz CH48/1538.98 nm, 100 Ghz CH49/1538.19 nm, 100 Ghz CH50/1537.40 nm, 100 Ghz CH51/1536.61 nm, 100 Ghz CH52/1535.82 nm, 100 Ghz CH53/1535.04 nm, 100 Ghz CH54/1534.25 nm, 100 Ghz CH55/1533.47 nm, 100 Ghz CH56/1532.68 nm, 100 Ghz CH57/1531.90 nm, 100 Ghz CH58/1531.12 nm, 100 Ghz CH59/1530.33 nm, 100 Ghz CH60/1529.55 nm
Distance	100km
Temperature	0°C to 70°C
Receiver	PIN PD

Download Datasheet
