Solid Optics' QSFP28 100G DCO ZR Gen2

Experience the Power of 100G Coherent Optics

100G Coherent DWDM
in a Compact QSFP28

The QSFP28 100G DCO ZR Gen2 marks a major leap forward for
service providers transitioning from 10G point-to-point
connections to 100G coherent DWDM technology. Designed to evolve from a high-power (15W) to a low-power (5W) solution.
Optimized for standard QSFP28 ports, it delivers powerful 100G
performance, tunable laser, and energy-efficient design,
making it ideal for a wide range of network applications, cable TV networks, and wireless front-haul and mid-haul. Plus, it comes with a lifetime warranty, ensuring lasting reliability.

100G Coherent DWDM
in a Compact QSFP28

The QSFP28 100G DCO ZR Gen2 marks a major leap forward for service providers transitioning from 10G point-to-point connections to 100G coherent DWDM technology. Designed to evolve from a high-power (15W) to a low-power (5W) solution. Currently optimized for QSFP-DD ports, it delivers powerful 100G performance, tunable options, and energy-efficient design, making it ideal for a wide range of network applications, cable TV networks, and wireless front-haul and mid-haul. Plus, it comes with a lifetime warranty, ensuring lasting reliability.

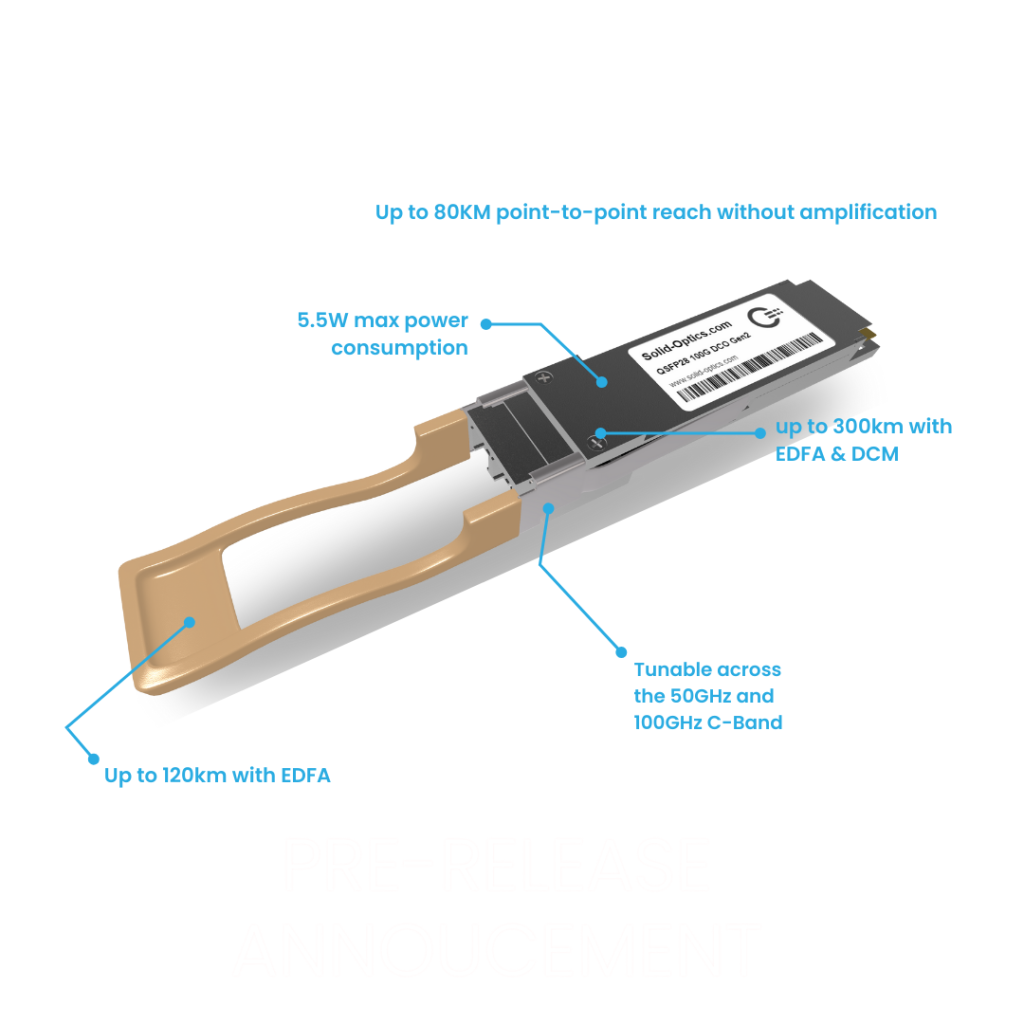

Get to know the QSFP28 100G DCO ZR Gen2

The QSFP28 100G DCO Gen2 offers exceptional performance and versatility

100G Transmission Capacity

Built to handle IEEE 100G Ethernet or ITU-T OTN OTU4 signals,
it allows seamless high-speed data transport over long distances.

Extended Reach

Operating efficiently up to 80 km without amplification,
with options to reach up to 300 km when extended.

DP-DQPSK Modulation

Features dual-polarization differential quadrature phase-shift keying (DP-DQPSK),
enabling a more efficient and coherent optical interface.

Full C-band Tunability

The Gen2 module is C-band tunable, allowing it to operate on a 50GHz or 100GHz grid
with optional Flextune™ for automatic wavelength tuning.

Energy Efficiency

Designed with energy savings in mind, the module dissipates less than 5.5W of power,
making it ideal for power-sensitive environments.

Designed for Versatile Applications

Access and Aggregation Networks

A reliable option for high-capacity data centers and aggregation points.

Cable TV Networks

Provides a robust backbone for delivering content over cable networks.

Wireless Fronthaul and Midhaul

Ensures high-speed connectivity in wireless network infrastructures.
